Threaded Sliding Latch Quick Couplings - Technical Data

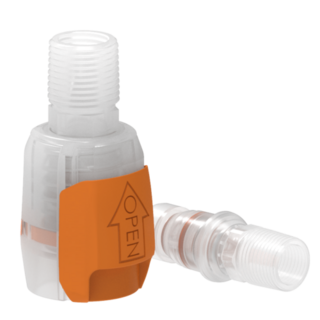

Threaded Sliding Latch Quick Couplings

Description

Series: Small, Medium & Large

Spring not in fluid path

Threads:

  • 1/8" NPT
  • 1/4" NPT
  • 3/8" NPT
  • 1/2" NPT

Dimensions (mm)

Dimensions Threaded Sliding Latch Quick Couplings
Series
Threads
A
B
C
D
E
F
G
H
Small (1)
NPT 1/8″
77.22
49.78
22.86
21.34
53.09
36.58
48.26
37.08
Small (2)
NPT 1/8″
77.22
49.78
22.86
21.34
53.09
36.58
48.26
37.08
Medium (1)
NPT 1/4″
91.95
54.1
28.45
25.15
61.21
39.88
56.64
40.13
Medium (2)
NPT 1/4″
91.95
54.1
28.45
25.15
61.21
39.88
56.64
40.13
Medium (3)
NPT 1/4″
91.95
54.1
28.45
25.15
61.21
39.88
56.64
40.13
Medium (1)
NPT 3/8″
91.95
54.1
28.45
25.15
61.47
39.88
56.64
40.13
Medium (2)
NPT 3/8″
91.95
54.1
28.45
25.15
61.47
39.88
56.64
40.13
Medium (3)
NPT 3/8″
91.95
54.1
28.45
25.15
61.47
39.88
56.64
40.13
Large (1)
NPT 1/2″
117.6
71.12
38.1
33.53
76.71
49.02
76.2
56.39
Large (2)
NPT 1/2″
117.6
71.12
38.1
33.53
76.71
49.02
76.2
56.39
Large (3)
NPT 1/2″
117.6
71.12
38.1
33.53
76.71
49.02
76.2
56.39

Weight versions with valves (g)

Series
Female

Male


PP
PVDF
GFBN
PP
PVDF
GFBN
Small (1)
8
13
12
4
7
6
Small (2)
8
13
12
4
7
6
Medium (1)
11
19
17
6
9
9
Medium (2)
11
19
17
6
9
9
Medium (3)
11
19
17
6
9
9
Large (1)
27
45
41
15
27
23
Large (2)
27
45
41
15
27
23
Large (3)
27
45
41
15
27
23

Threaded versions without valve (g)

Series
Female

Male


PP
PVDF
GFBN
PP
PVDF
GFBN
Small (1)
8
13
12
2
4
3
Small (2)
8
13
12
2
4
3
Medium (1)
10
18
16
3
6
4
Medium (2)
10
18
16
3
6
4
Medium (3)
10
18
16
3
6
4
Large (1)
24
42
37
9
18
14
Large (2)
24
42
37
9
18
14
Large (3)
24
42
37
9
18
14
