RV-Series Pinch Valve with DC-Motor

Tube size: 1,60 x 3,20mm (1/16“ x 1/8“) (ID x OD)

RV-001 Valve with open valve head

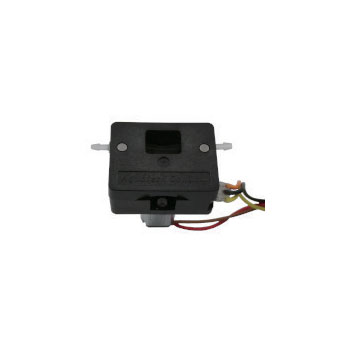

RV-001 Valve
RV-001 Valve with connector

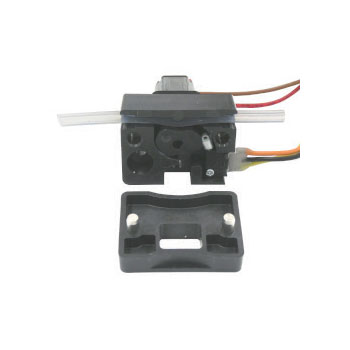

RV-001 Valve with open valve head
RV-001 Valve
RV-001 Valve with connector

Description

Ultra-low power consumption
  • Since power is supplied only at the timing of opening and closing, there is almost no heat generation
  • Since the configuration is so simple, using a DC geared motor,  dedicated drive circuit is not necessary
The main unit is small and lightweight
  • Dimensions 30 x 23 x 41.4 mm (W x D x H)
  • Weight 33 g (excluding wiring and tubing)
Replacing of the tubing is simple and easy
  • The cover is attached with a magnet
The valve can be equipped with continuous tubing or with tube sets.
  • Silikon (Shin-Etsu Polimer Co., Ltd.)
  • PharMed BPT (Saint-Gobain)
  • Versilon F-5500-A (Saint-Gobain)
  • Transmaster TM-15 (Mitsuboshi Co. Ltd)
  • Tygon LMT-55 (Saint-Gobain)

The optional dedicated motor controller is available, which allows to individually program operation sequences of up to three valves (RE-V100).

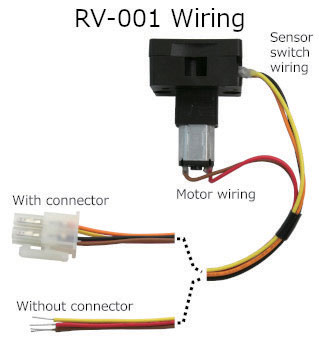

Model-overview

Product
Wiring length
Connector
RV-001ZA
50 cm
without Connector
RV-001ZB
2 m
with Connector
RV-001ZC
50 cm
with Connector

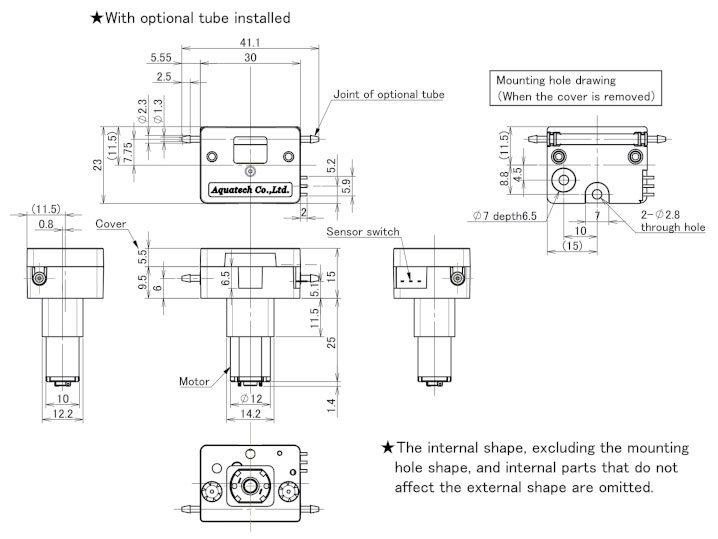

Dimensions RV-001 Pinch Valve

Dimensions RV-001 Pinch Valve

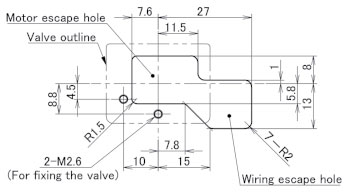

RV-001 Mounting
RV-001 Mounting

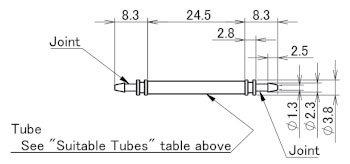

RV-001 Tube-sets
RV-001 Tube-sets
Controller RE-V100

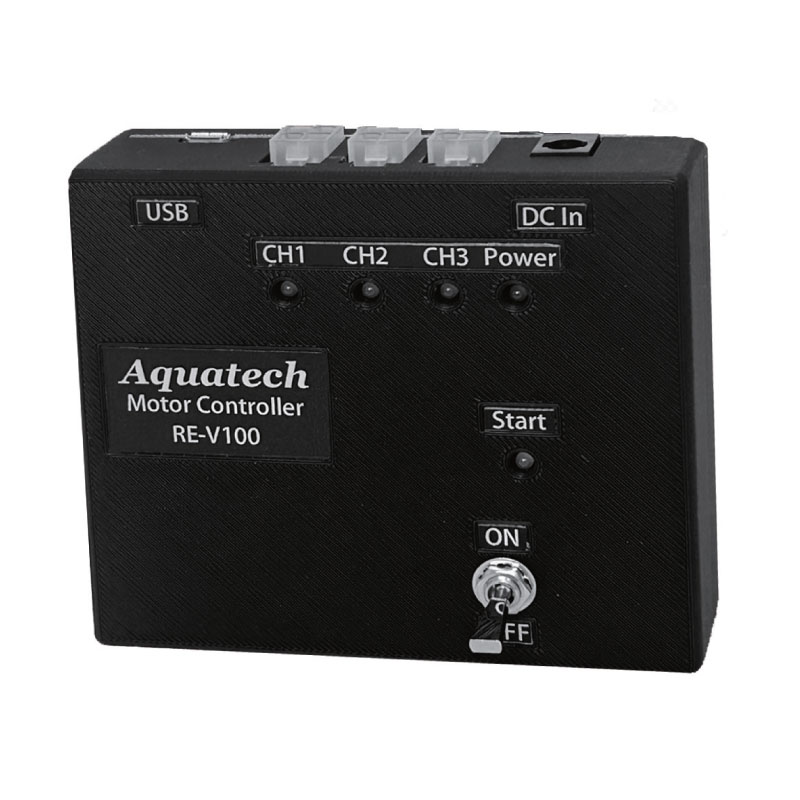

RE-V100 Controller for RV-001 Pinch Valves

  • Control for RV-001 pinch valves with DC motor
  • Up to three valves can be connected and programmed individually.
  • Software for Windows PC
  • The created program can be saved on the control and then started independently of the PC.
  • Various programs can be saved on the PC and loaded as needed.
  • The connector versions of the valves are required to connect the valves to the controller.

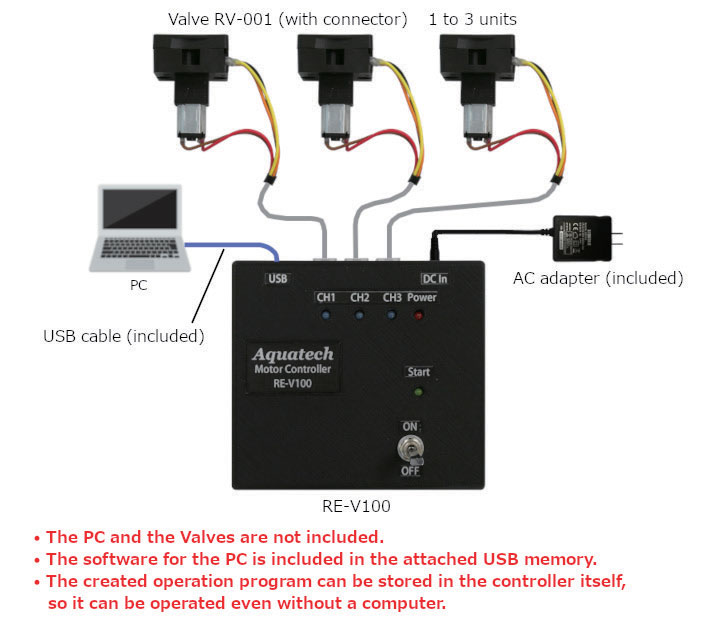

RE-V100 Setup
