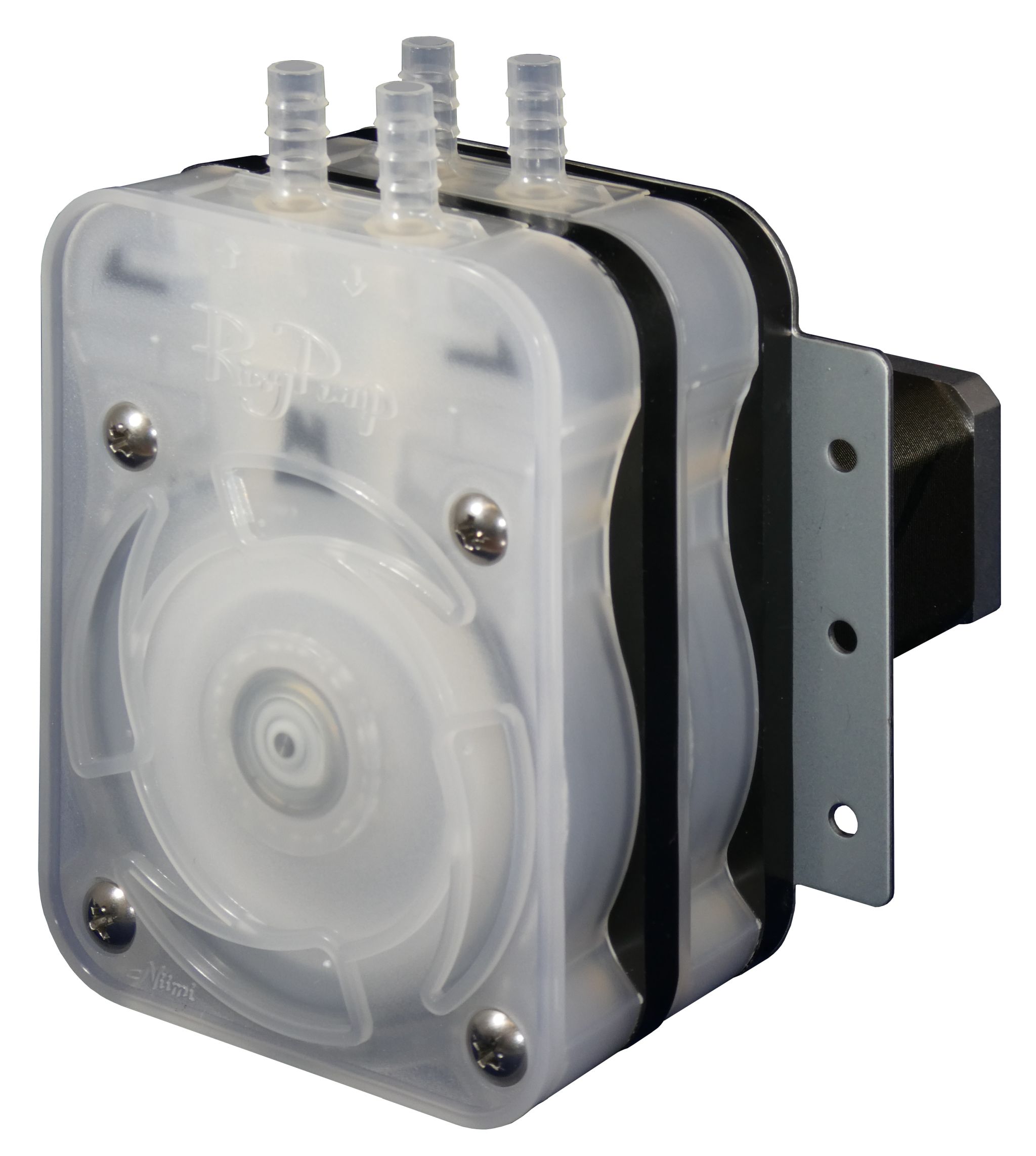

RP-2S Series - Ring Pump double head peristaltic pump - high flow rate
Flow rates: 1000ml/min, 1400ml/min, 1600ml/min
Description
Doble-head peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)
Large flow rate with fixed tube.
Product overview
Model No.
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Motor
|
Förderrichtung
|
|---|---|---|---|---|---|---|
RP-2S06N-1000Ｚ-DC24V
|
24
|
1000
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06F-1000Z-DC24V
|
24
|
1000
|
PharMed BPT
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06W-1000Z-DC24V
|
24
|
1000
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06N-1400Z-DC24V
|
24
|
1400
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor B
|
CW
|
RP-2S06F-1400Z-DC24V
|
24
|
1400
|
PharMed BPT
|
6.35 ｘ 9.52
|
Motor B
|
CW
|
RP-2S07W-1600Z-DC24V
|
24
|
1600
|
Transmaster TM-15
|
7 ｘ 10
|
Motor B
|
CW
|
Specifications
Motor
|
DC gear motor
|
Flow rate
|
1000ml | 1400ml | 1600ml
|
Channels
|
2
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Silicone | PharMed® | TM-15
|
Tube sizes (I.D. x O.D.)
|
6.35 x 9.52mm | 7.00 x 10.00mm
|
Operating voltage
|
24VDC
|
Dimensions
|
81.0 x 54.6 x 108.0 mm
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm) Motor
|
Rotation direction
| |
|---|---|---|---|---|---|---|
RP-2S06N-1000Ｚ-DC24V
|
24
|
1000
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06F-1000Z-DC24V
|
24
|
1000
|
PharMed BPT
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06W-1000Z-DC24V
|
24
|
1000
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-2S06N-1400Z-DC24V
|
24
|
1400
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor B
|
CW
|
RP-2S06F-1400Z-DC24V
|
24
|
1400
|
PharMed BPT
|
6.35 ｘ 9.52
|
Motor B
|
CW
|
RP-2S07W-1600Z-DC24V
|
24
|
1600
|
Transmaster TM-15
|
7 ｘ 10
|
Motor B
|
CW
|
Relation between suction / discharge height and discharge rate

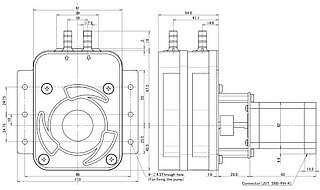

Dimensions
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Downloads
RP-2S datasheet 205 KB
