DCP-400 diaphragm pump - PP, PTFE, FFKM
up to 400 ml/min - wetted materials PP, PTFE, FFKM
Description
The self-priming diaphragm pumps of the DCP-400 series with delivery rates of 400 ml/min, at operating pressure ranges from -600 to 1000 mbar.
The high-quality brushless motor ensures a long lifetime.
Specifications
Typ
|
DCP-400P -N1TG
|
Flow rate (max.)
|
400 ml/min
|
Pressure (max.)
|
1000 mbar
|
Vacuum (max.)
|
-600 mbar
|
Voltage
|
12VDC | 24VDC
|
Fluid temperature range
|
10 - 40°C
|
Ambient temperature range
|
10 - 40°C
|
Power consumption
|
8 W
|
Connection
|
hose barbs
|
Body material
|
PP, PTFE, FFKM
|
Dimensions
|
30 x 55.2 x 68.2 mm
|
Weight
|
approx. 150 g
|

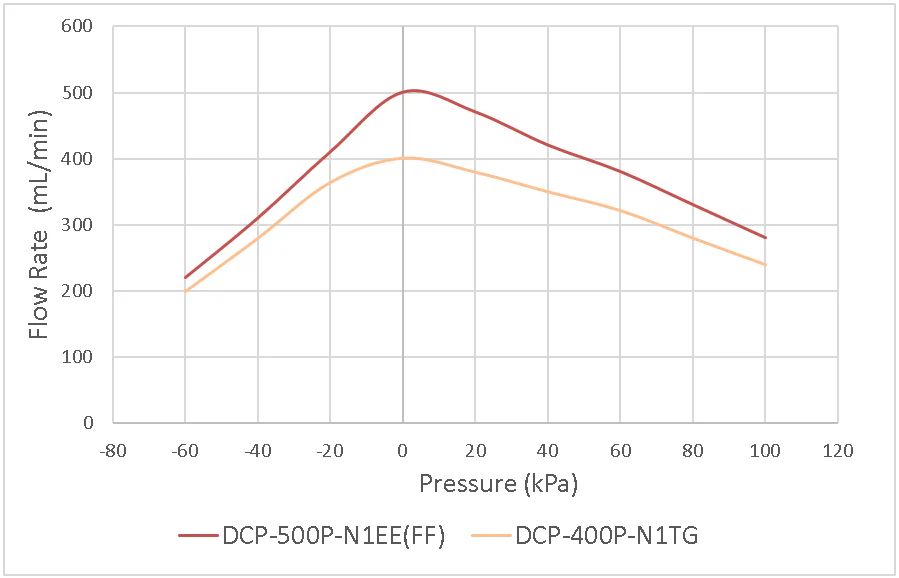

Flow rate DCP-400 diaphragm pump

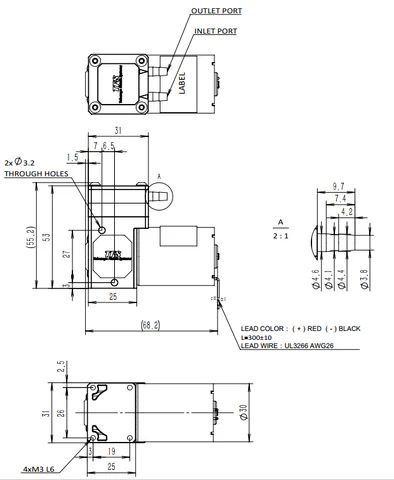

Dimensions
Downloads
DCP-400 datasheet 298 KB
