DCP-300 diaphragm pump - up to 6 bar

up to 300 ml/min - up to 6 bar

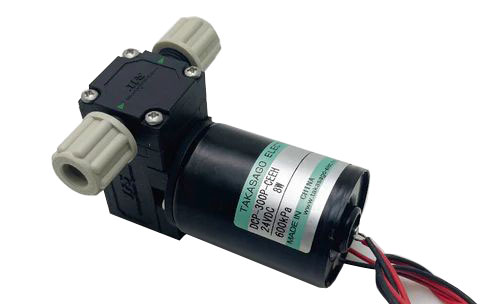

DCP-300 diaphragm pump

Description

The self-priming diaphragm pumps of the DCP-300 series with delivery rates of 300 ml/min, at operating pressure ranges from -300 to 6000 mbar.

The high-quality brushless motor ensures a long lifetime.

Specifications

Type
DCP-300P-CEEH
Flow rate (max.)
300 ml/min
Pressure (max.)
6000 mbar
Vacuum (max.)
-300 mbar
Voltage
12VDC | 24VDC
Media temperature
0 - 80°C
Ambient temperature
0 - 40°C
Power consumption
8 W
Connection
Compression fitting
for tubing 4.0 x 6.0 mm (ID x OD)
Wetted materials
PP, EPDM
Dimensions
30 x 42,6 x 68 mm
Weight
approx. 126 g

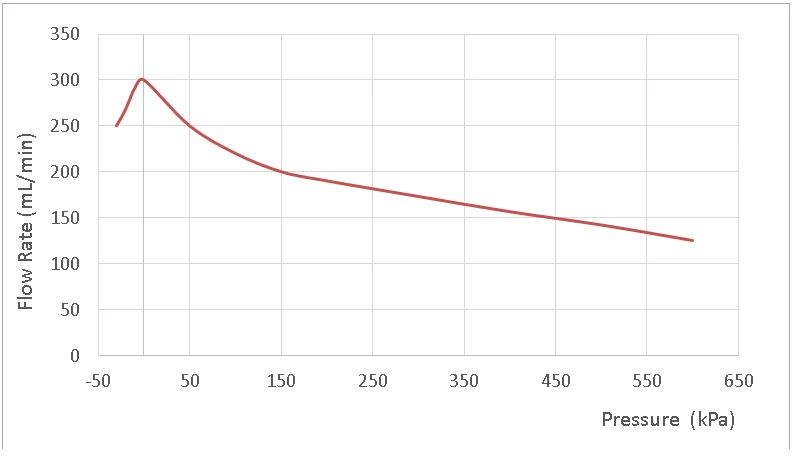

Flow rate DCP-300 diaphragm pump

Flow rate DCP-300 diaphragm pump

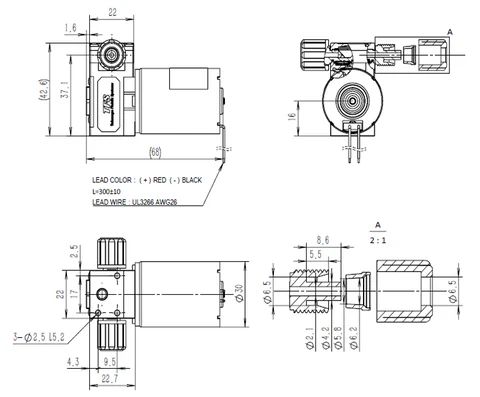

Dimensions

DCP-300 dimensions
