DCP-180 diaphragm pump - PP, PTFE, FFKM

up to 180 ml/min - wetted materials PP, PTFE, FFKM

DCP-180

Description

The self-priming diaphragm pumps of the DCP-180 series with flow rates of up to 180 ml/min, at operating pressure ranges from -300 to 1000 mbar.

The high-quality brushless motor ensures a long lifetime.

Specifications

Type
DCP-180P-N1TG
Flow rate (max.)
180 ml/min
Pressure (max.)
1000 mbar
Vacuum (max.)
-300 mbar
Voltage
12VDC | 24VDC
Media temperature
10 - 40°C
Ambient temperature
10 - 40°C
Power consumption
3.6 W
Connection
Hose Barbs
Wetted materials
PP, PTFE, FFKM
Dimensions
24.4 x 42.7 x 51 mm
Weight
approx. 80 g

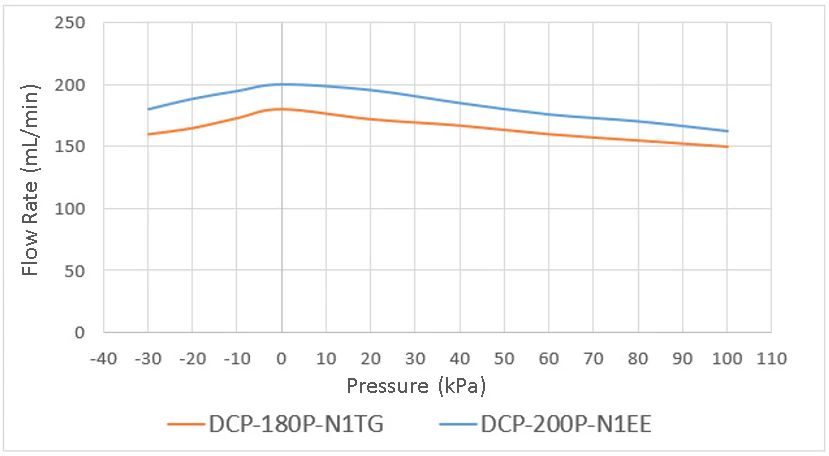

Flow rate DCP-180 diaphragm pump

DCP-180 flow rate

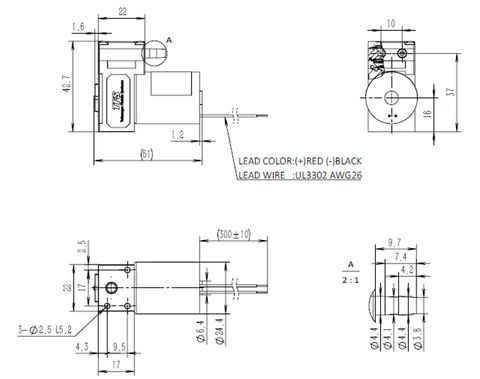

Dimensions

DCP-180 dimensions

Downloads
